Object Detection on GPU on Android

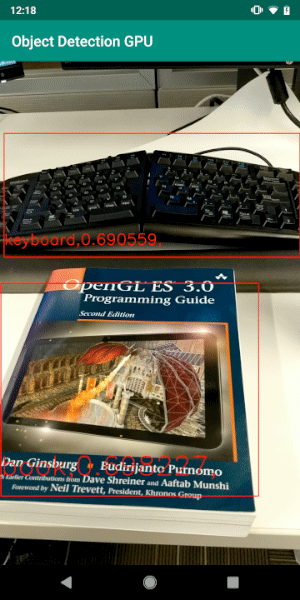

Please see Hello World! in MediaPipe on Android for general instructions to develop an Android application that uses MediaPipe. This doc focuses on the example graph that performs object detection with TensorFlow Lite on GPU.

{width="300"}

App

The graph is used in the Object Detection GPU example app. To build the app, run:

bazel build -c opt --config=android_arm64 mediapipe/examples/android/src/java/com/google/mediapipe/apps/objectdetectiongpu

To further install the app on android device, run:

adb install bazel-bin/mediapipe/examples/android/src/java/com/google/mediapipe/apps/objectdetectiongpu/objectdetectiongpu.apk

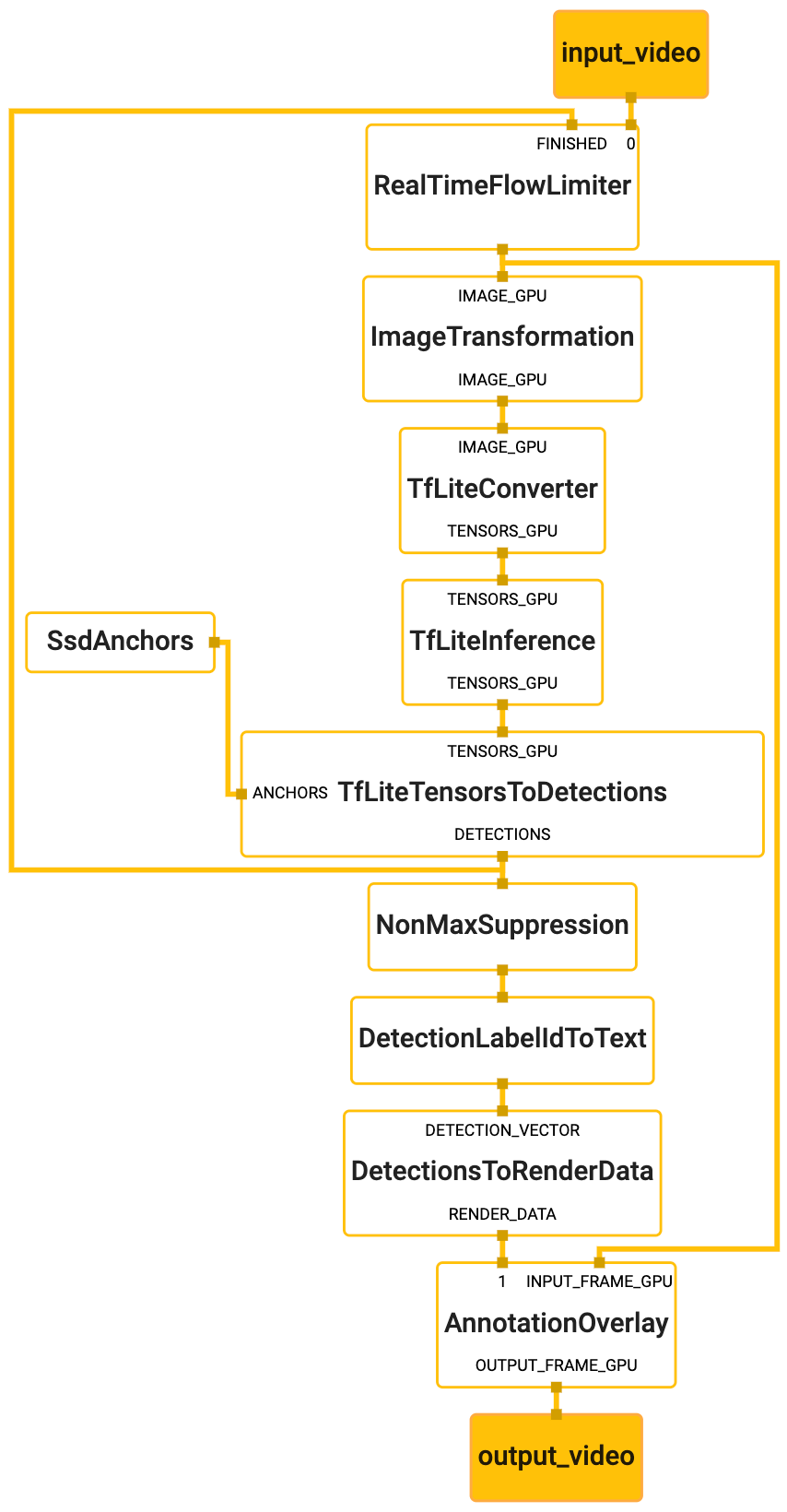

Graph

{width="400"}

To visualize the graph as shown above, copy the text specification of the graph below and paste it into MediaPipe Visualizer.

# MediaPipe graph that performs object detection with TensorFlow Lite on GPU.
# Used in the example in
# mediapipie/examples/android/src/java/com/mediapipe/apps/objectdetectiongpu.

# Images on GPU coming into and out of the graph.
input_stream: "input_video"
output_stream: "output_video"

# Throttles the images flowing downstream for flow control. It passes through
# the very first incoming image unaltered, and waits for
# TfLiteTensorsToDetectionsCalculator downstream in the graph to finish
# generating the corresponding detections before it passes through another
# image. All images that come in while waiting are dropped, limiting the number
# of in-flight images between this calculator and
# TfLiteTensorsToDetectionsCalculator to 1. This prevents the nodes in between
# from queuing up incoming images and data excessively, which leads to increased
# latency and memory usage, unwanted in real-time mobile applications. It also
# eliminates unnecessarily computation, e.g., a transformed image produced by
# ImageTransformationCalculator may get dropped downstream if the subsequent
# TfLiteConverterCalculator or TfLiteInferenceCalculator is still busy
# processing previous inputs.
node {
  calculator: "RealTimeFlowLimiterCalculator"
  input_stream: "input_video"
  input_stream: "FINISHED:detections"
  input_stream_info: {
    tag_index: "FINISHED"
    back_edge: true
  }
  output_stream: "throttled_input_video"
}

# Transforms the input image on GPU to a 320x320 image. To scale the image, by
# default it uses the STRETCH scale mode that maps the entire input image to the
# entire transformed image. As a result, image aspect ratio may be changed and
# objects in the image may be deformed (stretched or squeezed), but the object
# detection model used in this graph is agnostic to that deformation.
node: {
  calculator: "ImageTransformationCalculator"
  input_stream: "IMAGE_GPU:throttled_input_video"
  output_stream: "IMAGE_GPU:transformed_input_video"
  node_options: {
    [type.googleapis.com/mediapipe.ImageTransformationCalculatorOptions] {
      output_width: 320
      output_height: 320
    }
  }
}

# Converts the transformed input image on GPU into an image tensor stored in
# tflite::gpu::GlBuffer. The zero_center option is set to true to normalize the
# pixel values to [-1.f, 1.f] as opposed to [0.f, 1.f]. The flip_vertically
# option is set to true to account for the descrepancy between the
# representation of the input image (origin at the bottom-left corner, the
# OpenGL convention) and what the model used in this graph is expecting (origin
# at the top-left corner).
node {
  calculator: "TfLiteConverterCalculator"
  input_stream: "IMAGE_GPU:transformed_input_video"
  output_stream: "TENSORS_GPU:image_tensor"
  node_options: {
    [type.googleapis.com/mediapipe.TfLiteConverterCalculatorOptions] {
      zero_center: true
      flip_vertically: true
    }
  }
}

# Runs a TensorFlow Lite model on GPU that takes an image tensor and outputs a
# vector of tensors representing, for instance, detection boxes/keypoints and
# scores.
node {
  calculator: "TfLiteInferenceCalculator"
  input_stream: "TENSORS_GPU:image_tensor"
  output_stream: "TENSORS_GPU:detection_tensors"
  node_options: {
    [type.googleapis.com/mediapipe.TfLiteInferenceCalculatorOptions] {
      model_path: "ssdlite_object_detection.tflite"
    }
  }
}

# Generates a single side packet containing a vector of SSD anchors based on
# the specification in the options.
node {
  calculator: "SsdAnchorsCalculator"
  output_side_packet: "anchors"
  node_options: {
    [type.googleapis.com/mediapipe.SsdAnchorsCalculatorOptions] {
      num_layers: 6
      min_scale: 0.2
      max_scale: 0.95
      input_size_height: 320
      input_size_width: 320
      anchor_offset_x: 0.5
      anchor_offset_y: 0.5
      strides: 16
      strides: 32
      strides: 64
      strides: 128
      strides: 256
      strides: 512
      aspect_ratios: 1.0
      aspect_ratios: 2.0
      aspect_ratios: 0.5
      aspect_ratios: 3.0
      aspect_ratios: 0.3333
      reduce_boxes_in_lowest_layer: true
    }
  }
}

# Decodes the detection tensors generated by the TensorFlow Lite model, based on
# the SSD anchors and the specification in the options, into a vector of
# detections. Each detection describes a detected object.
node {
  calculator: "TfLiteTensorsToDetectionsCalculator"
  input_stream: "TENSORS_GPU:detection_tensors"
  input_side_packet: "ANCHORS:anchors"
  output_stream: "DETECTIONS:detections"
  node_options: {
    [type.googleapis.com/mediapipe.TfLiteTensorsToDetectionsCalculatorOptions] {
      num_classes: 91
      num_boxes: 2034
      num_coords: 4
      ignore_classes: 0
      sigmoid_score: true
      apply_exponential_on_box_size: true
      x_scale: 10.0
      y_scale: 10.0
      h_scale: 5.0
      w_scale: 5.0
      flip_vertically: true
    }
  }
}

# Performs non-max suppression to remove excessive detections.
node {
  calculator: "NonMaxSuppressionCalculator"
  input_stream: "detections"
  output_stream: "filtered_detections"
  node_options: {
    [type.googleapis.com/mediapipe.NonMaxSuppressionCalculatorOptions] {
      min_suppression_threshold: 0.4
      min_score_threshold: 0.6
      max_num_detections: 3
      overlap_type: INTERSECTION_OVER_UNION
    }
  }
}

# Maps detection label IDs to the corresponding label text. The label map is
# provided in the label_map_path option.
node {
  calculator: "DetectionLabelIdToTextCalculator"
  input_stream: "filtered_detections"
  output_stream: "output_detections"
  node_options: {
    [type.googleapis.com/mediapipe.DetectionLabelIdToTextCalculatorOptions] {
      label_map_path: "ssdlite_object_detection_labelmap.txt"
    }
  }
}

# Converts the detections to drawing primitives for annotation overlay.
node {
  calculator: "DetectionsToRenderDataCalculator"
  input_stream: "DETECTION_VECTOR:output_detections"
  output_stream: "RENDER_DATA:render_data"
  node_options: {
    [type.googleapis.com/mediapipe.DetectionsToRenderDataCalculatorOptions] {
      thickness: 4.0
      color { r: 255 g: 0 b: 0 }
    }
  }
}

# Draws annotations and overlays them on top of the original image coming into
# the graph. Annotation drawing is performed on CPU, and the result is
# transferred to GPU and overlaid on the input image. The calculator assumes
# that image origin is always at the top-left corner and renders text
# accordingly. However, the input image has its origin at the bottom-left corner
# (OpenGL convention) and the flip_text_vertically option is set to true to
# compensate that.
node {
  calculator: "AnnotationOverlayCalculator"
  input_stream: "INPUT_FRAME_GPU:throttled_input_video"
  input_stream: "render_data"
  output_stream: "OUTPUT_FRAME_GPU:output_video"
  node_options: {
    [type.googleapis.com/mediapipe.AnnotationOverlayCalculatorOptions] {
      flip_text_vertically: true
    }
  }
}
